On the highly automated module PACK production line, OCV (open circuit
voltage) detection, as a key link, has a fine process like every precise
operation of a precision instrument, ensuring high-quality output of battery
modules. The following is an in-depth revelation of this process:
I. Precise calibration to ensure accuracy
Before the detection starts, technicians will conduct strict calibration on
the OCV detection equipment, including voltage measurement accuracy, current
control stability, etc., to ensure that each detection can reach micron-level
precision. This calibration process is like giving a comprehensive "physical
examination" to the detection equipment to ensure that it is in the best state
to meet the test of battery cells.

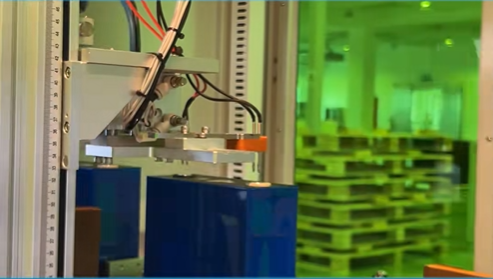

II. Intelligent guidance for precise positioning of battery cells
Through the collaborative work of machine vision and precision robotic arms,
battery cells are accurately placed on the detection fixture. In this process,
the equipment will automatically recognize information such as the model and
size of the battery cell and adjust the fixture to adapt to different battery
cells to ensure good contact and accurate data during detection.
III. Slight charging and discharging to capture voltage instants
After the detection starts, the equipment will perform a short charging and
discharging operation on the battery cell to simulate the voltage changes in the
actual working scenario. During this process, the equipment will capture the
open circuit voltage (OCV) of the battery cell in real time and record every
subtle instant of voltage change. These data are of great significance for
evaluating the health status of the battery cell and predicting its service
life.

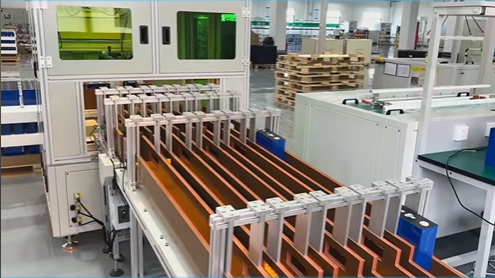

IV. High-speed analysis and intelligent classification
The collected data will be immediately transmitted to the intelligent
analysis system for high-speed processing through complex algorithms. The system
will evaluate and classify the performance of the battery cell according to
preset standards and thresholds. This process is like looking for "gold" in a
vast amount of data and picking out battery cells with excellent performance to
provide the best materials for subsequent module assembly.
V. Fine traceability for controllable quality
To ensure the traceability of product quality, all data generated during the
detection process will be recorded in detail and stored in the cloud database.
This information not only helps with subsequent troubleshooting and quality
improvement but also provides customized reports and solutions for
customers.
VI. Green and safe for worry-free production
While pursuing high efficiency and precision, the module PACK production line
also focuses on green production and safety production. Waste generated during
the detection process will be properly disposed of in accordance with
environmental protection requirements. At the same time, the equipment will be
equipped with multiple safety protection measures to ensure the safety of
operators and the stability of the production environment.
Through the revelation of the above fine process, we can see the importance
of OCV detection in the module PACK production line. It is not only a simple
testing link but also the key to ensuring high quality and high reliability of
battery modules.
