A Comprehensive Overview of Laser Metal 3D Printing Technology

  Laser metal 3D printing is an advanced additive manufacturing technology that builds complex metal parts layer by layer using a high-energy laser beam to selectively melt metal powder based on digital models. Breaking the limitations of traditional subtractive processes, it offers tremendous advantages in structural complexity, material efficiency, and customization. Huiyao Laser (Luoyang) Technology Co., Ltd., a leading player in China's smart manufacturing landscape, is at the forefront of this innovation, delivering cutting-edge laser additive manufacturing systems and tailored solutions for industries such as aerospace, medical, automotive, and tooling.  This article presents a comprehensive analysis of laser metal 3D printing from six key dimensions: working principles, major process types, core advantages, material compatibility, application sectors, and future trends.

1. Working Principle

The process begins with designing a 3D model of the component using CAD software. The model is then sliced into 2D layers using dedicated slicing software, generating a laser scanning path for each layer. During printing, the system spreads a thin layer of metal powder over the build platform. A high-power laser beam selectively melts the powder along the pre-defined path. As the process repeats layer by layer, the final three-dimensional, dense metal part is formed.

This technology enables the creation of complex internal geometries, lattice structures, and cooling channels that are extremely difficult—or impossible—to manufacture using conventional methods. Additionally, it minimizes material waste and significantly shortens product development cycles.

2. Major Process Categories

1. Selective Laser Melting (SLM)

SLM employs a high-power laser in an inert gas environment to fully melt metal powder layer by layer. It is ideal for high-precision, high-density parts with complex geometries. Key features include:

• Near-100% part density with excellent mechanical properties;

• Broad material compatibility: stainless steels, titanium alloys, aluminum alloys, nickel-based alloys, etc.;

• High requirements for powder sphericity, size distribution, and flowability;

• Relatively higher equipment and operational costs—suitable for high-end, precision applications.

2. Laser Engineered Net Shaping (LENS)

LENS involves direct powder feeding into the laser focal point to quickly build up large-scale or repaired components. It excels in:

• Mold-free, near-net-shape fabrication of large parts;

• Supporting heterogeneous and functionally graded materials;

• High efficiency and material utilization;

• Ideal for industrial-scale parts and repair applications.

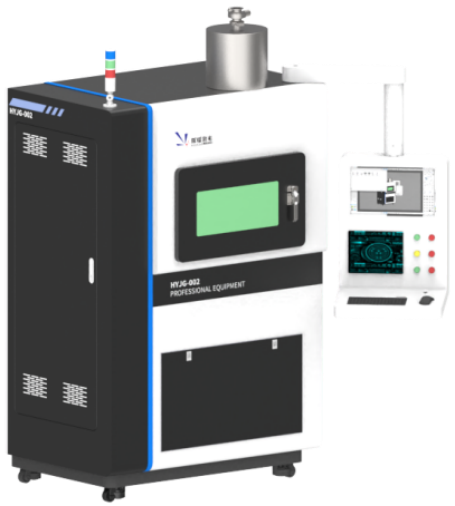

Huiyao Laser provides both SLM and LENS systems and can customize the solution architecture according to customer requirements.

3. Core Advantages

Laser metal 3D printing offers clear advantages over traditional casting, machining, and forging:

• Exceptional design freedom: Enables topology optimization, internal lattice structures, and integrated channels;

• No molds or tooling required: Ideal for prototyping and small-batch production;

• High mechanical performance: Printed parts exhibit excellent strength, toughness, and corrosion resistance;

• High material efficiency: Powder recycling minimizes waste (less than 5% loss);

• Cross-industry adaptability: From aerospace turbines to medical implants, applications are vast.

4. Material Compatibility

Laser 3D printing is compatible with a wide range of metals. Huiyao Laser supports a variety of materials with optimized printing parameters:

• Stainless steels (e.g., 316L): corrosion-resistant, ideal for tools and medical components;

• Titanium alloys (e.g., Ti6Al4V): biocompatible, widely used in aerospace and implants;

• Aluminum alloys (e.g., AlSi10Mg): lightweight and strong, perfect for automotive and aerospace parts;

• Nickel-based alloys: high-temperature performance, used in combustion chambers and turbines;

• Tool steels & high-strength steels: for dies, molds, and wear-resistant components.

Huiyao Laser also provides material consultation and performance validation services to ensure optimal results for different applications.

5. Application Fields

Aerospace

Ideal for fabricating turbine blades, brackets, and integrated cooling structures that reduce weight while enhancing efficiency and reliability.

Medical

Used to produce customized titanium dental implants, orthopedic parts, and surgical instruments, enhancing patient-specific treatment and reducing production cost.

Automotive

Enables lightweight components, custom heat exchangers, and brake calipers with reduced lead time and optimized structural strength.

Tooling

Direct printing of conformal cooling molds and complex internal structures enhances mold lifespan and injection efficiency.

Industrial Energy & Equipment

Applicable in gas turbines, power connectors, and specialty fittings requiring extreme mechanical or thermal performance.

6. Future Trends & Industry Outlook

The future of laser metal 3D printing lies in these key directions:

•  Material innovation: New alloys like cobalt-based, refractory metals (e.g., tungsten), precious metals, and functional gradient materials are on the rise;

• Technology advancement: Focus on multi-laser systems, multi-material printing, large-format printing, and real-time monitoring for improved scalability;

• Smart equipment development: Modular, automated, and cost-efficient machines will support wider industrial adoption;

• Integration with intelligent manufacturing: Combining AI, simulation, and Industrial Internet technologies will accelerate smart, agile, and efficient production.




Huiyao Laser (Luoyang) Technology Co., Ltd. is committed to driving the industrialization of metal additive manufacturing. Through our independently developed equipment, advanced printing processes, and integrated material support, we empower global manufacturers to upgrade toward intelligent and high-value production.
