Lithium Battery Pack Assembly Equipment Guide

In today’s lithium-ion battery manufacturing sector, end-to-end automation and process control are essential to achieving cost-efficient, safe, high-quality production of battery packs. This guide walks through the major phases of pack-assembly, the equipment involved, and the testing and challenge points that must be addressed to ensure a robust production line.

1. Cell Sorting and Grouping

Before any assembly begins, individual battery cells must be sorted and grouped by key characteristics such as internal resistance, capacity, voltage, and quality. Proper cell grading equipment ensures consistency in the packs and helps avoid performance variation later in use.
Equipment for this phase often includes automated testers, data logging stations, and sorting conveyors integrated into the line.

2. Cell Assembly and Spot Welding

Once cells are sorted, they move into the assembly phase where they are welded into modules or packs. Spot-welding machines and automated fixtures align cells and apply nickel or other conductive strips to interconnect them. Precision and repeatability are critical: weak welds or misalignment can degrade performance or cause safety failures.
Key equipment includes robotic welding arms, vision alignment systems, and process monitoring modules.

3. Module & Pack Assembly

After welding, cells are grouped into modules (or directly into packs) depending on the design. This phase often involves assembly of structural frames, thermal management components, enclosures, busbars, wiring, and integration of cells into the larger pack architecture. The equipment here must handle heavy and bulky components, provide precise positioning, and support high throughput.

4. Testing and Quality Control

Testing is a major focus in pack assembly: voltage, internal resistance, insulation, leak tests, cycle tests, and final pack validation are all required to ensure safety and reliability. Automated equipment with real-time data capture, CCD/vision systems, and X-ray inspection help detect defects early.
Challenges in this phase include ensuring test coverage, avoiding bottlenecks, and managing large volumes of test data.

5. Common Challenges in Pack Assembly

Some of the key challenges that equipment and process designers face include:

• Achieving consistent cell quality and managing large variation in cell manufacturing.

• Ensuring weld quality, mechanical integrity, and electrical balance in modules and packs.

• Integrating diverse equipment (sorters, welders, assembly robots, testers) into a smooth line workflow.

• Scaling up automation without sacrificing flexibility for different cell types or battery formats.

• Managing data, traceability and inspection to support warranty, safety and regulatory requirements.

6. Equipment Selection Considerations

When selecting equipment for a lithium battery pack assembly line, consider:

• Flexibility: Can the line handle pouch, prismatic, and cylindrical cells?

• Automation rate: What level of robotization and smart controls are possible?

• Throughput and yield: Does the equipment support your target output and quality metrics?

• Data integration: Does the system include data collection, traceability and analytics?

• Safety and inspection: Does the line include built-in inspection (vision, X-ray, leak) and fault prevention systems?

7. Putting It All Together: Designing the Line

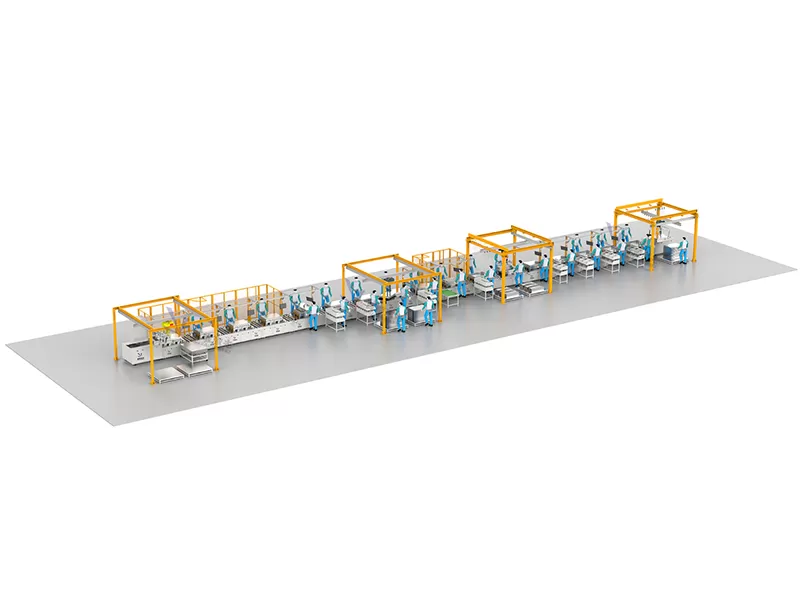

The ideal battery pack assembly line should be designed as a coherent system: starting with cell input, through welding and module/pack build, into testing and final QC. Each equipment block must be synchronized, with material handling, robot flows, inspection and data systems integrated. The goal is to minimize downtime, maximize yield and maintain traceability throughout.
By following structured phases—from sorting through testing—and by selecting the right equipment at each stage, manufacturers can build a robust, scalable pack assembly line.

Conclusion

A high-performance lithium battery pack assembly line requires more than just individual machines—it demands a fully integrated system, optimized for speed, precision and quality. By understanding the process phases and the equipment requirements for each, manufacturers and system integrators can make informed decisions that lead to reliable production, strong yield and safe products.
